Kee Guard® for Ladder Access

Protection at a dangerous transition

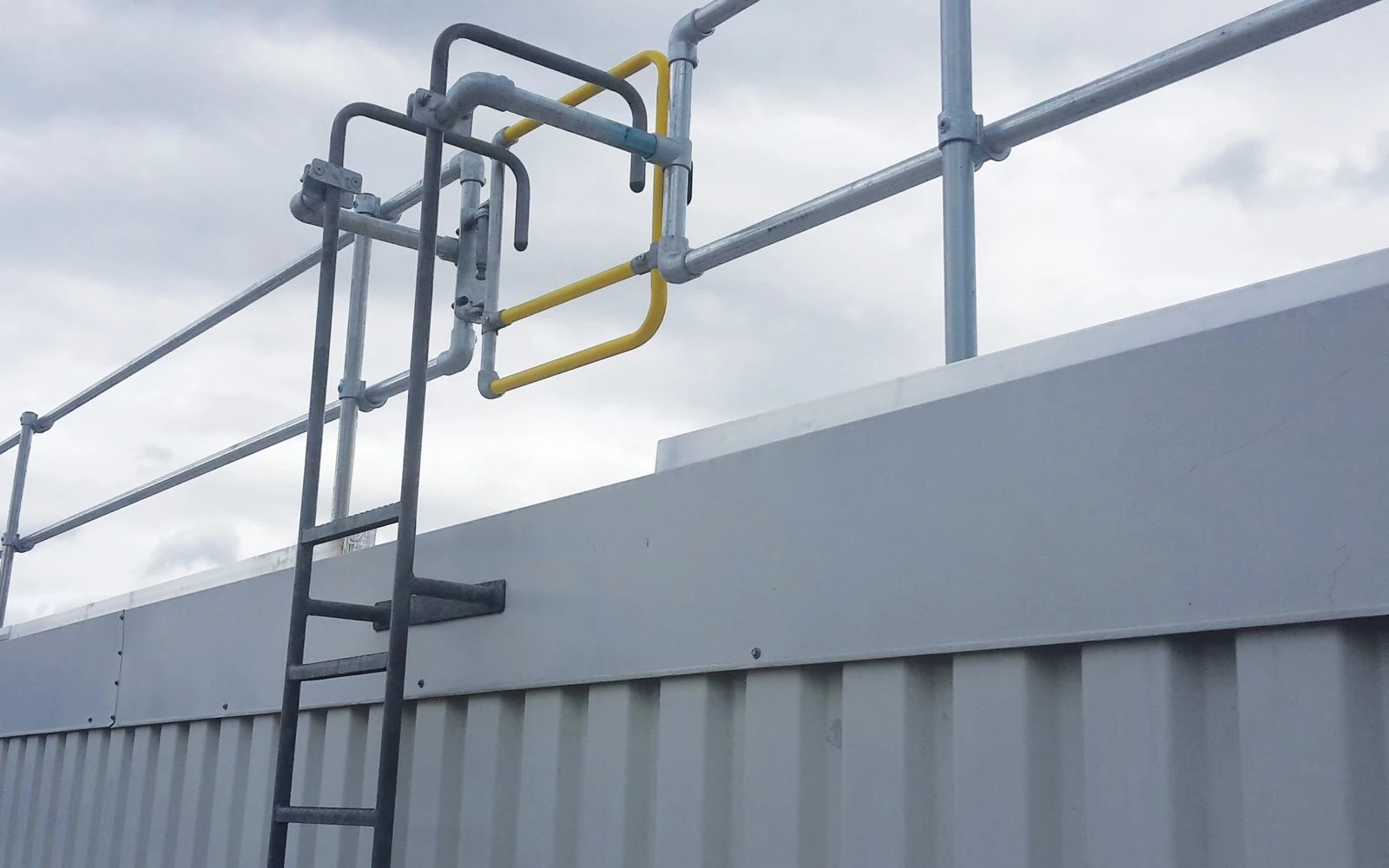

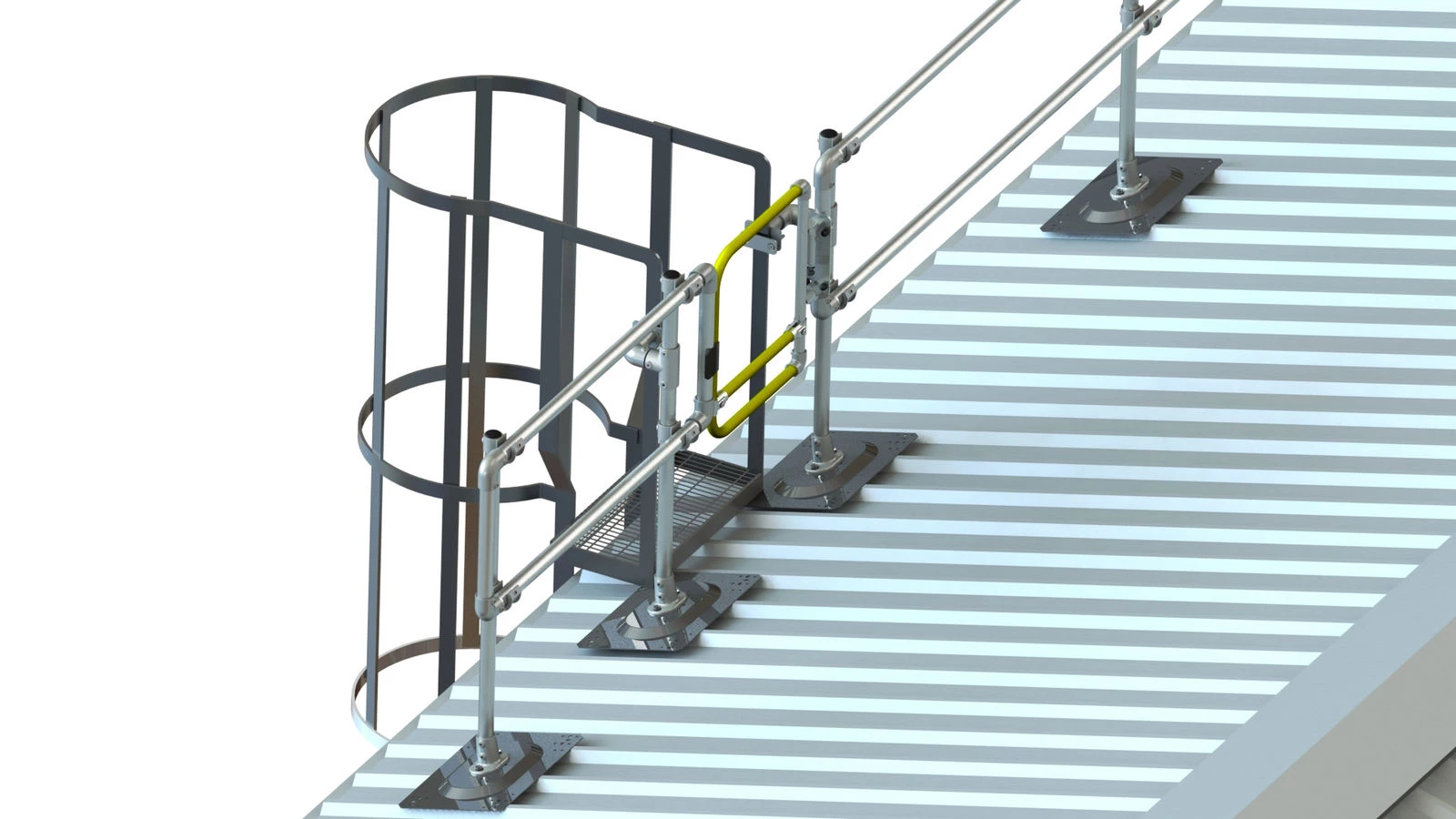

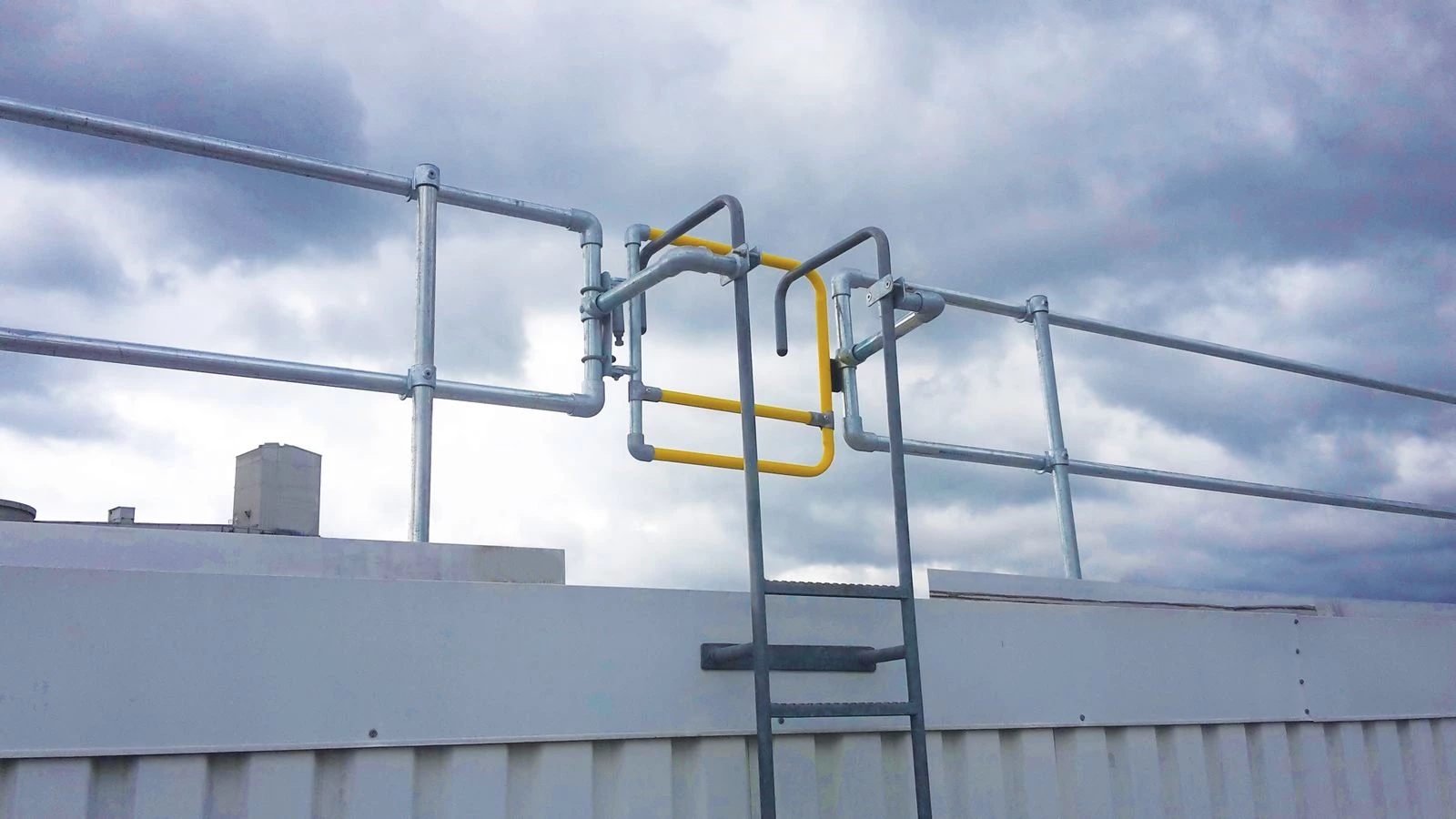

One of the most dangerous points of the roof is the transition point between the roof and the ladder. Kee Guard^® for Ladder Access provides a layer of fall protection right where it's needed. The guard railing flanks the access point, ensuring a safe approach. Kee Gate^® is a self-closing safety gate that ensures that the ladder access point is approached in intentionally. Finally, the surrounding supports ensure that there are plenty of support when making the transition on and off the roof.

Benefits & Advantages

Versatile and easy to install

There is no welding needed on-site, which means it can be installed with basic tools. Plus the components can be adapted to meet the unique design requirements of non-standard roof applications.

Roof edge protection

On a flat or low slope roof, a protected perimeter limits access to the leading edge. Installing a modular, free-standing railing system that does not penetrate the roof membrane provides a permanent, safe and dependable barrier for the roof edge.

Simple Solution

Instead of having to re-think each access point. Kee Guard^® provides you with a quick way to deploy a workable solution to a wide variety of rooftop environments.

Key Features

Fast installation

The kit is easy to install with a few simple hand tools, in most cases, no roof penetration is required

Multiple connection types

Kee Guard^® can attach to flat, trapezoidal and standing steam roofs

OH&S Compliant

Exceeds Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09 for fall protection.

Corrosion resistant

All iron fittings are galvanized to EN ISO 1461 so the system will last for years without corrosion.

Highest standards for off-the-ground safety

Federal [Canada] Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09
Alberta Occupational Health and Safety Code, 2009 Part 9, Fall Protection Sections 138 - 161
British Columbia Occupational Health and Safety Regulations, B.C. Reg. 296/97 Part 11, Fall Protection, Sections 11.1 to 11.10
Manitoba Workplace Safety and Health Regulation, Man. Reg. 217/2006 Part 14, Fall Protection, Sections 14.1 to 14.23
New Brunswick General Regulation -N.B. Reg. 91-191 Part VII, Protective Equipment, Sections 49 - 51
Newfoundland and Labrador Occupational Health and Safety Regulations, 2012, N.L.R. 5/12 Part X, Fall Protection, Sections 138 to 146
Northwest Territories Occupational Health and Safety Regulations, R-039-2015 Part 7, Personal Protective Equipment, Sections 103 to 109 and Part 9 Safeguards, storage, warning signs and signals, Sections 118 to 124
Nova Scotia Workplace Health and Safety Regulations, N.S. Reg. 52/2013 Part 21, Fall Protection, Sections 21.1 to 21.4

Nunavut General Safety Regulations, R.R.N.W.T. 1990, c. S-1, Part 7 Sections 104 to 109, and Part 9, Sections 118 to 122
Ontario Construction Projects, O. Reg. 213/91 Sections 26 - 26.9 and Industrial Establishments, R.R.O. 1990, Reg. 851 Section 85
Prince Edward Island Fall Protection Regulations, EC2004-633
Quebec Regulation respecting occupational health and safety, O.C. 885-2001
Division XXX, Means and Equipment for Individual and Group Protection Sections 347 - 349.1 and
Safety Code for the construction industry R.R.Q. 1981, c. S-2.1, r. 6 Division II, General Provisions Sections 2.9.1 to 2.9.3, Safety measures
Saskatchewan Occupational Health and Safety Regulations, 1996, R.R.S., C. O-1.1, R. 1 Sections 102 to 107, and Sections 116 to 116.3
Yukon Occupational Health and Safety Regulation, O.I.C. 2006/178 Protective Equipment and Clothing - Fall Arrest Sections 1.37 to 1.43

Frequently Asked Questions

General

- Can I use alternative fall protection methods (anchor points/warning line) as protection at rooftop access points?

  No. OSHA is very clear in 1910.28(b)(3)(iv) that only railing and a self-closing gate are acceptable means of fall protection at rooftop access points.
- Will the gate pinch my fingers while I climb through the top of the ladder?

  The gate on KeeGuard Ladder Kits are attached to the railing and not the ladder. This enables you to transition onto the roof and push through the gate with your body – no hands needed!
- Can the KeeGuard Ladder Kit be designed as a “shoot” to direct traffic to the center of the roof?

  Yes, KeeGuard ladder kit can be installed along the roof edge to protect the fall hazard, or in 2 parallel lines to direct traffic to the center of the roof.
- Is protection needed on ladders between roof levels?

  OSHA requires all access points 4’ or higher above an adjacent level to be protected, regardless if the lower level is a roof, the ground, or a work platform.
- How does the railing attach to the sides of the ladder?

  Our SL109 Clamps are designed to clamp onto nearly any ladder style, no drilling or welding necessary.
